How to Create Blend Curve on Surface using Siemens NX?

In this TechTip, we will learn how to create a fillet blend curve between two intersecting curves on surfaces, use the Blend Curve on Surface command, allowing you to trim or keep the input curves, lock the radius, if necessary, specify a complement blend arc, select curves spanning multiple surfaces, and make the blend associative or non-associative, resulting in four blend curves on a surface.

Table of Contents

Steps to Create Blend Curve on Surface via Siemens NX:

Below are the step-by-step instructions and tutorial video to do creation of blend curve surface on Siemens NX

Step 1:

  • Open Blend_curve.prt.

Creating Blend Curve on Nx

Step 2:

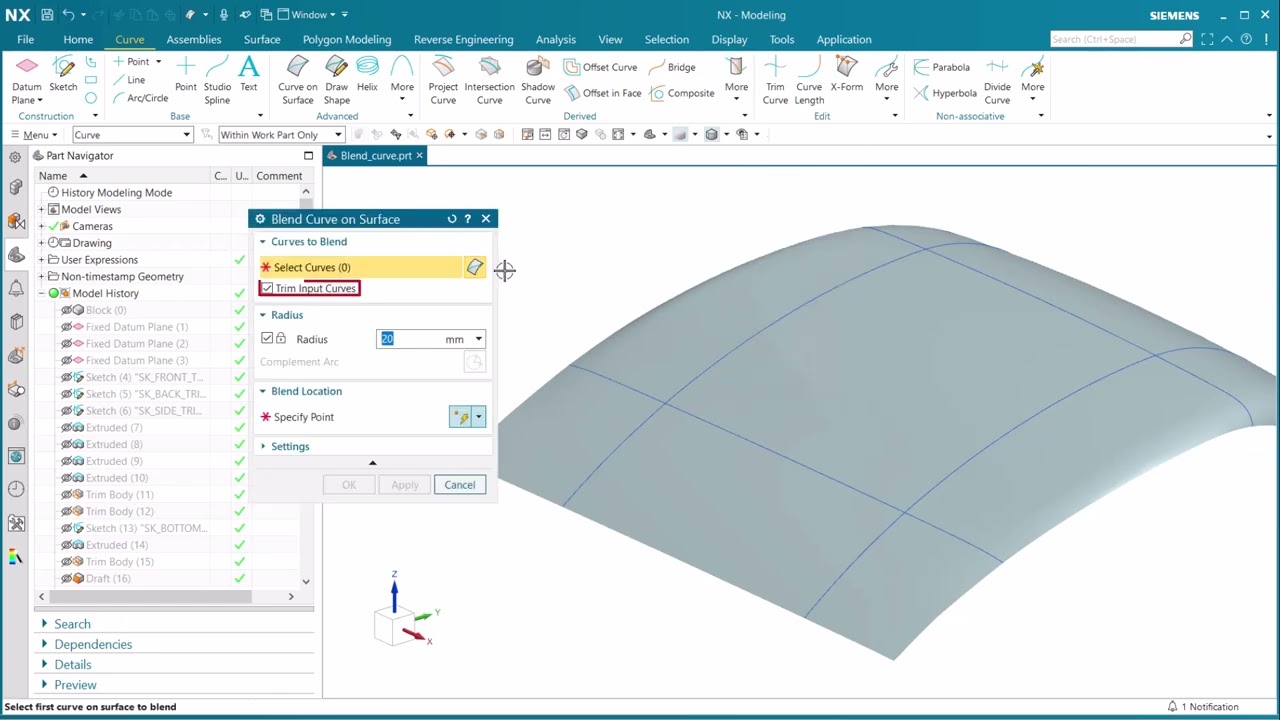

  • Select Curve Tab > Derived Group > More Gallery > Blend Gallery > Blend Curve on Surface to Display Blend Curve on Surface dialog box.

how to create Blend Curve on Surface using Siemens Nx

Step 3:

  • Select two intersecting Curves as shown in the below image.

Creating Blend Curve on Surface using Siemens Nx

Step 4:

  • To trim extended curves, activate Trim Input Curves.

    Specify Blend Location point, where you want to create blend curve.

    Enter Radius value as 20mm.

learn to create blend curve on Siemens NX

Step 5:

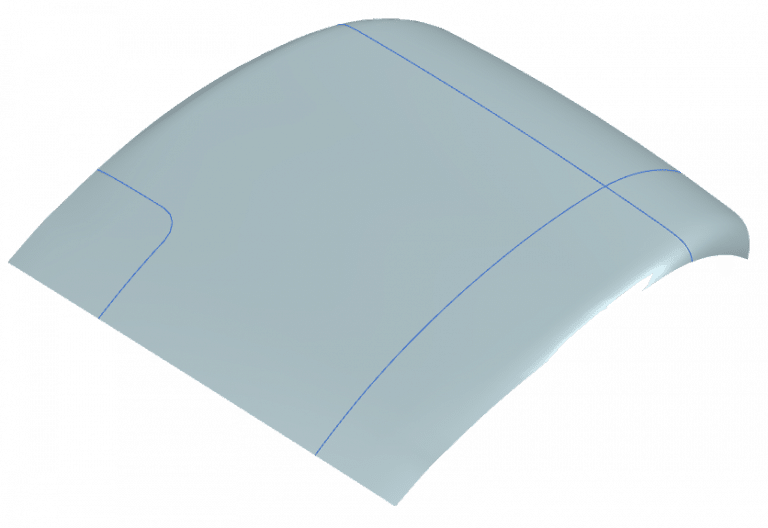

  • Click on OK to create blend curve.
how to blend curve on on NX

Step 6:

  • Also, you can create Blend curves without eliminating the curves by disabling Trim Input Curves in the dialog box. Repeat steps 2 to 4 multiple times to achieve this result.

Final Notes

In conclusion, mastering the blend curve creation on surfaces in Siemens NX is an essential skill for CAD professionals seeking to elevate the precision and versatility of their designs. This powerful feature enables users to create seamless, complex curves that conform to a surface’s geometry, enhancing both the aesthetic and functional aspects of any model. By integrating these advanced tools into your workflow, you’re not only optimizing productivity but also setting the stage for tackling more sophisticated engineering challenges with confidence. As CAD technology continues to advance, staying proficient in tools like Siemens NX will be crucial for maintaining a competitive edge and driving innovation in the industry.
