Creating a Solid Combine feature in 3DEXPERIENCE

Overview

In this Tech Tip we will explain about creation of Solid Combine feature. It is a versatile feature that allows you to merge, subtract and intersect solid bodies effortlessly, opening the door to world of design possibilities.

Download Part file – Open Solid_combine.CATPart File. (This may require active subscription and logged in i GET IT account)

Please accept the cookies to view the following video.

Please follow the below steps to Create a Solid Combine

Step 1

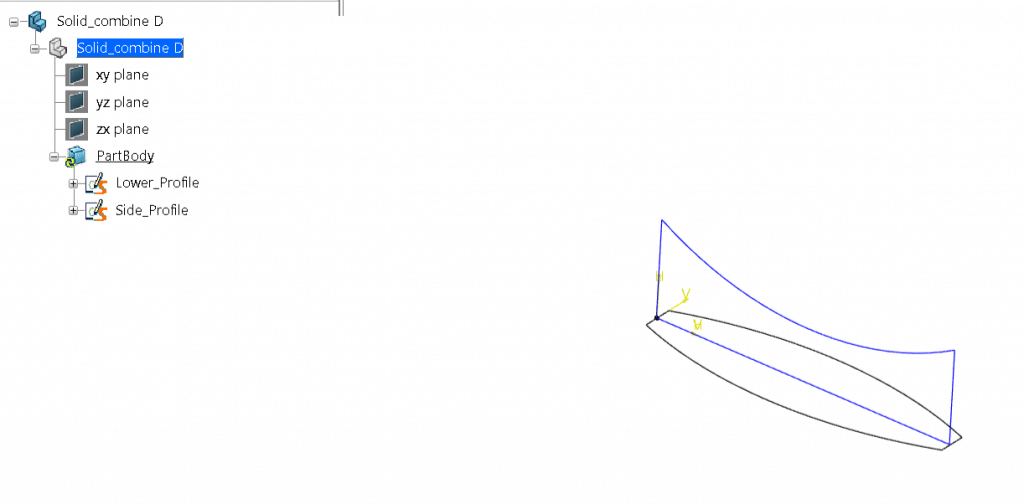

Open the part file Solid_Combine.CATpart or Any other available part file

step 1

Step 2

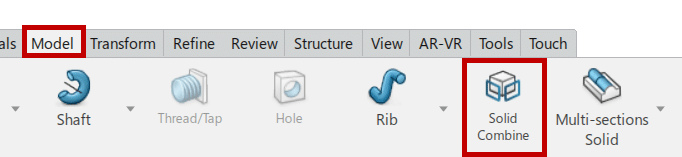

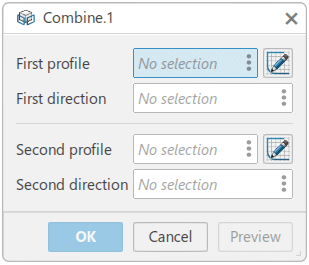

Select Action bar > Model > Solid Combine. CATIA displays the Combine Definition dialog and prompts you to pick the first profile.

step 2
step 2 b

Step 3

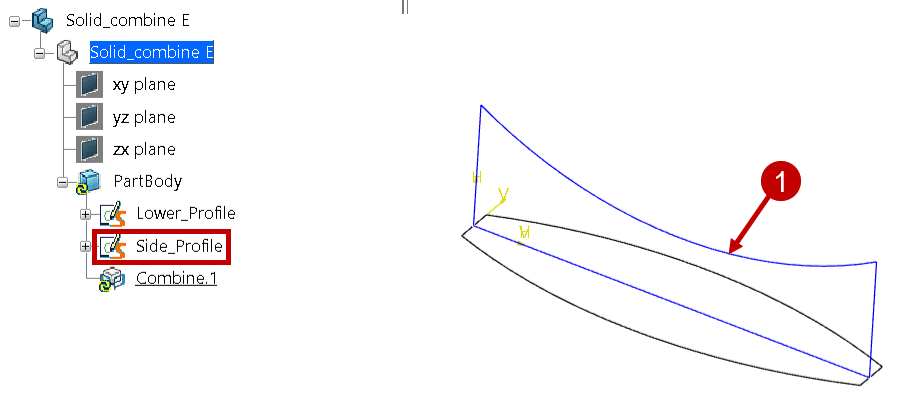

In the Graphics Window, pick the sketch labeled Or In the Specification Tree, select Side_Profile.

step 3

Step 4

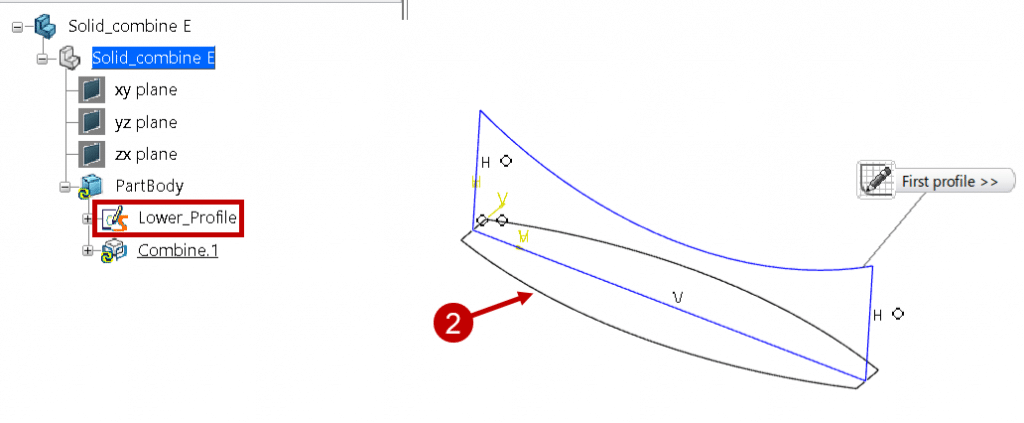

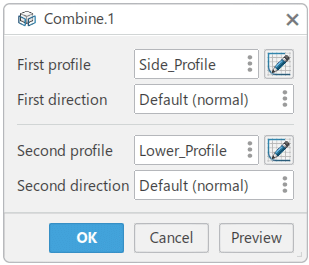

Pick the sketch labeled 2 or select Lower_Profile.

step 4
step 4b

Step 5

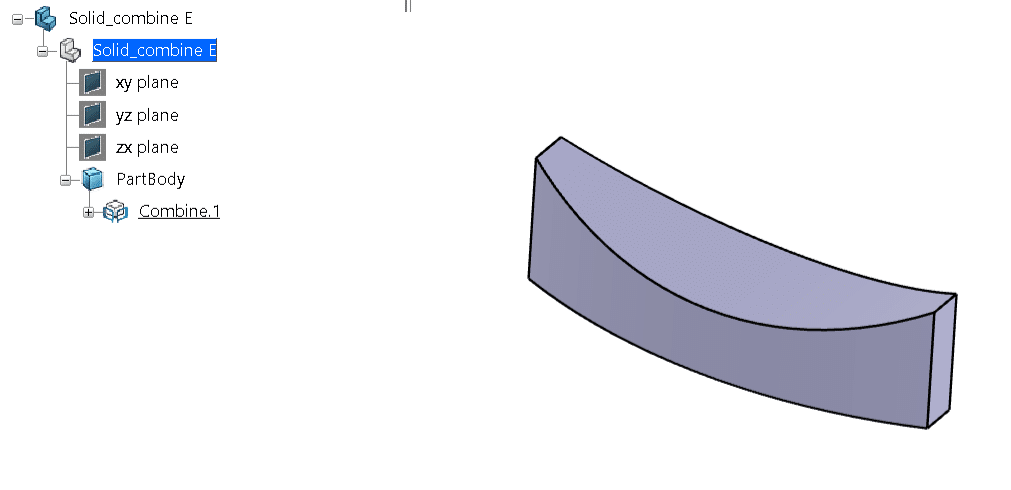

In the Combine Definition dialog, click OK to create the combined solid.

step 5
